| reply to state
Re: Post your network diagrams here..
My Home-Office Network |
Misc equipment that comes & goes relating to my work activities are not shown. |
|
robroy888
@beld.net | reply to state
»www.jrobroy.com/pics/dellpc.jpg
A different diagram. Wanted to show the guts of my Dell pc in addition to network. |
|
robroy8
Premium
join:2007-11-03
Braintree, MA
| reply to state
This is a bit different diagram. In addition to the network it shows the insides of my pc and where the various I/O devices connect. |
|
Chiyo
Save Me Konata-Chan
Premium
join:2003-02-20
Minneapolis, MN
clubs:
 ·Comcast
| reply to state
|
|
silas
@net.pl
| reply to state
here is my
---
»www.qnas.pl - QNAP NAS Monitoring Utility |
|
telecomkid
join:2007-02-11
Taiwan
| reply to state
mine... |
|
cow116
Cisco Kid
Premium
join:2003-03-10
Indianapolis, IN
clubs:
·RoadRunner Cable
| reply to state
Server Room |
Computer Room |
|
|
luminaire
Premium
join:2005-03-22
Oakville, ON
clubs:
1 edit | Not for nothing, but the dude generates horrid diagrams  . |
|
cow116
Cisco Kid
Premium
join:2003-03-10
Indianapolis, IN
clubs: | True but I dont have a copy of visio |
|
Cjaiceman
Premium,MVM
join:2004-10-12
Parker, CO
·Comcast Workplace
·Comcast
| reply to state
Ok, so I will start off my explaining mine.
The internet comes in through my Comcast connection, which is a Motorola SB5100 on the 8800/768 plan. Then it goes to a pfSense computer (specs below). This handles everything like DHCP, DNS, PPTP VPN, Firewall, NAT, etc... Next up is the Netgear JGS524 24 Port Gigabit switch. I picked this up from a local CompUSA durring their close out sale, paid about $120 for a $200 switch
The Server (see below for specs) houses all of my backup and media, it also has the only printer in the house, which is a HP Laserjet 6L.
From the switch it spans out to the rest of the network. The AP is a WRT54GS that is used to connect my two Windows Mobile phones. Its running DD-WRT.
My Desk has my gaming desktop and my laptop, it has a gigabit switch.
My Girlfriend's desk has her gaming desktop, her laptop and sometimes my friends laptop is connected to her switch. The extra desk is next to hers.
The family room has our 55" 1080p tv w/ 5.1 surround. For this I build a HTPC that can play BluRay and HD DVD. I also have a XBox 360. The HTPC can play files from the server on the big TV
The bedroom has a regular XBox, and a modded XBox running XBox media center. Its used to pull content from the server.
pfSense:
Intel P4 (423 pin) @ 1.3GHz
Intel MB
384MB RDRAM (64MBx2, 128MBx2)
10GB HDD
2x Linksys EG1032 Gigabit PCI NIC
Server:
Intel P4 @ 3.12GHz
Intel 875PBZ MB
1GB DDR-3200 (512MBx2)
320GB OS drive
400GBx4 RAID5 (1.09TB)
Server 2003
ChrisDT:
Intel Q6700 OC'ed to 3.1GHz
DFI Lanparty MB
4GB DDR2 (1GBx4)
150GB Raptor 10kRPM
74GB Raptor 10kRPM
ATI 2900XT 1GB GDDR3
Vista Ultimate 64bit
HTPC:
Intel Core 2 Duo E6600 @ 2.4GHz
2GB DDR2 (1GBx2)
250GB HDD
Antec P180B case (almost silent)
BluRay + HD DVD Combo drive
ATI 1800XT |
|
Napsterbater
Premium
join:2002-12-28
Milledgeville, GA
 ·Windstream
·BroadVoice
|
As you can see above this is how my network is physically connected.
And this is hows it logically connected. |
|
uid1307457
Premium
join:2005-12-30
Tempe, AZ
·Qwest.net
·Convergent Interne..
 ·DIRECTV
| reply to state
 |
|
Crash27
Bigger Caps
join:2004-09-04
Peterborough, ON
·Cogeco Cable
| reply to state
My Network |
|
|
powerspec88
Premium
join:2007-03-11
Harrisonville, MO
 ·Sprint Mobile Broa..
·AT&T Yahoo
| reply to state
Very basic setup of my network. My 56k server is hooked upto the WAN port on the router so its very easy to switch over to that network when i need to. I also use it to play WoW and EQ2 as my ping times are about 100Ms lower with it. |
|
hulber
join:2004-03-19
New York, NY
·RCN CABLE
·Vonage
1 edit | reply to state
I notice other people have the Laserjet 6L. I must have had that for at least 10 years. Once they fixed the feed issue I have had like no problems with that printer. |
|
wolfman2g1
join:2008-04-28
Brooklyn, NY | reply to state

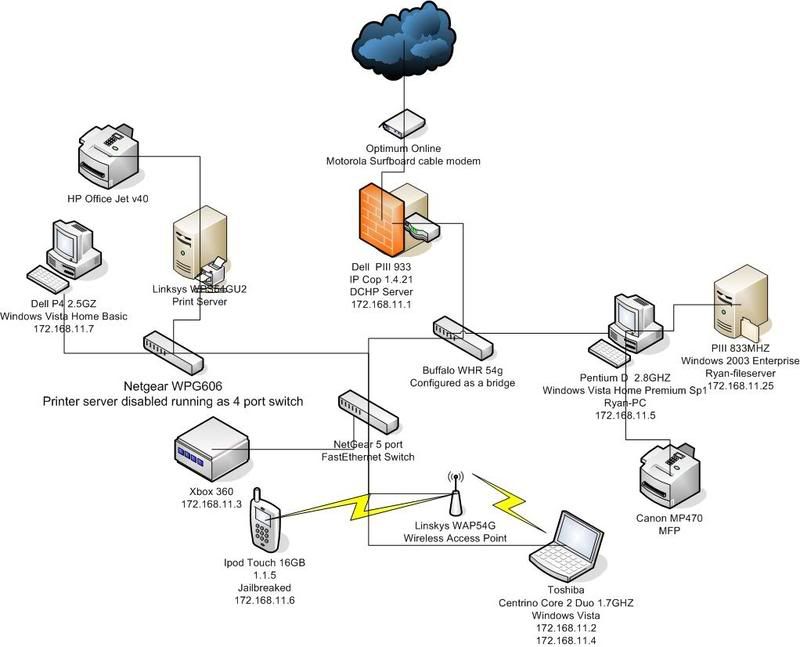

Been meaning to post this for a while this is what my network looks like now. in a few months i will be building a lap and also starting to do my own web hosting
 |
|
Chiyo
Save Me Konata-Chan
Premium
join:2003-02-20
Minneapolis, MN
clubs:
·Comcast
| reply to state
My updated layout |
|
trackybirthday
@arcor-ip.net
| reply to state
from aol.com in the 90s...
»web.archive.org/web/199704211702···web.html |
|
swarto112
join:2004-02-17
Tampa, FL
 ·Verizon FIOS
·Qwest.net
·CableOne
| reply to state
Unhitched my network from wired (cable, dsl) and am using 3G for both internet and home phone. Like many I ported my home phone to a third line for the house. But since it was wired to feed the whole house already by the cable voip i was able to swap in a bluetooth telephone system so I can use all three phones via the wired network. www.xlink.com
Also, using the same cell phone for data, I've attached a network diagram. So I was able to reduce my costs by using a Motorola V9 3G phone that I was using already and I had updated my personal phone to a smartphone. That V9 powers both the whole house phone system and the internet...all for an extra 30 bucks per month on my cell phone bill( 3 lines, 3 data plans aka medianet unlimited). I'm projected to save over $1000 this year even after start up costs. |
|
networknovice
@charter.com
| reply to state
Main Rig
OS: Windows Vista Ultimate x64
GA-P35-DS3L Motherboard
Intel Xeon 3110 CPU (OC'D 4.005GHz)
4GB (2x2GB) PC8500 DDR2 OCZ Reaper Memory
Office PC
OS: Windows Vista Home Premium x64
DFI Lan Party nF4 Ultra-D Motherboard
AMD Athlon 64 X2 3800 CPU (OC'D 2.5GHz)
4GB (4x1GB) PC400 DDR OCZ Memory
HTPC
OS: Windows Vista Home Premium x86
GA-K8N51PVM9-RH Motherboard
AMD Athlon 64 X2 3800 CPU
2GB (2x1GB) PC400 Memory
Cisco 851 Router
1xWan Interface (Fa4) 10/100mb
4xLan Interface (Switched, Fa0/Fa3) 10/100mb
Allows only 1 virtual lan, Vlan 1.
IOS image: c850-advsecurityk9-mz.124-15.T3.bin
Running DHCP server on Vlan 1 for network 192.168.1.0 |
|
